 iMica one
|  | Author: Steve Jones Date: 08/03/2009 23:19:08 |
iMica one from ClusterUK
Welcome to the new iMica one from Cluster Uk Developments ltd and powered by Aros.

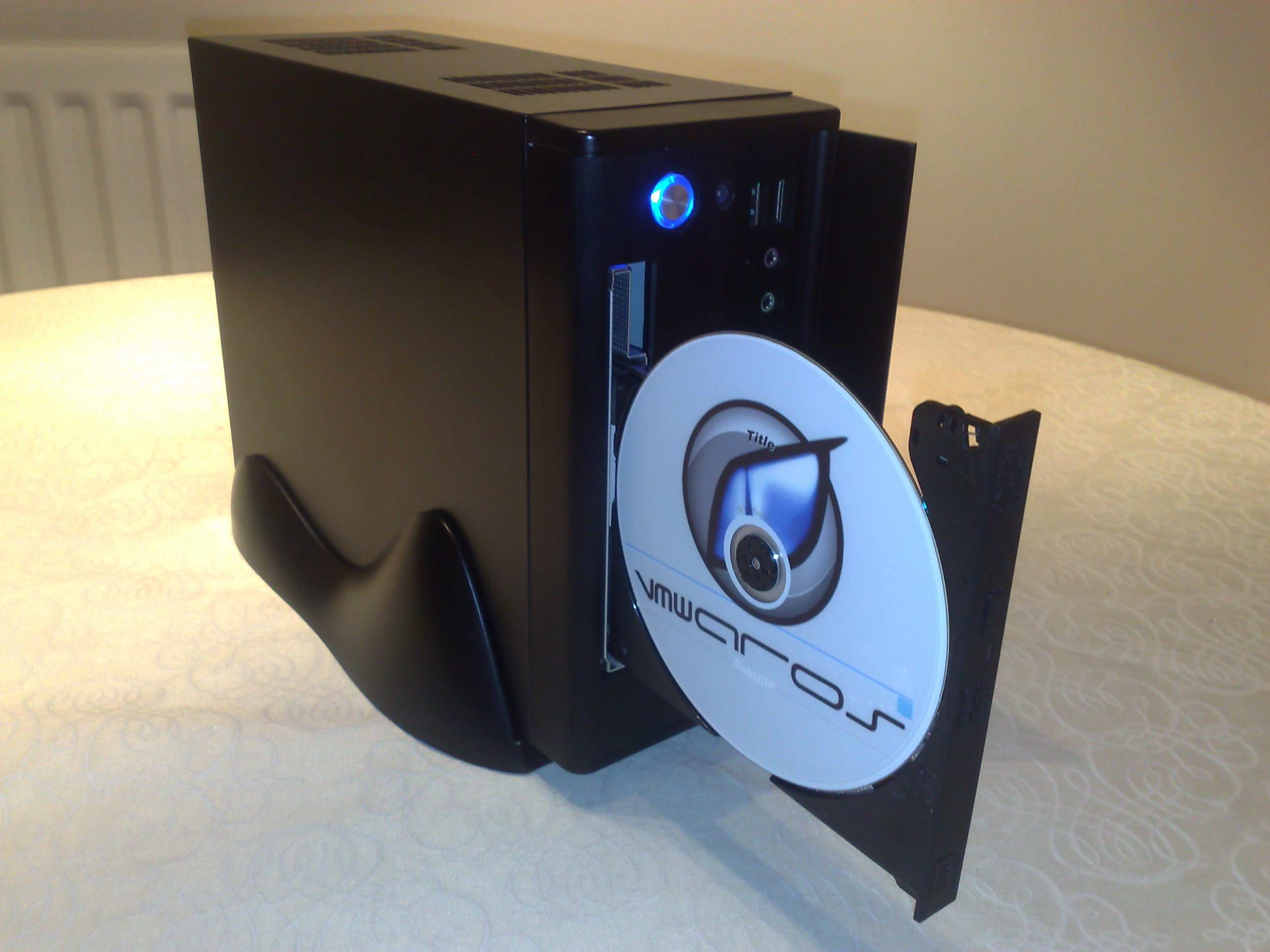

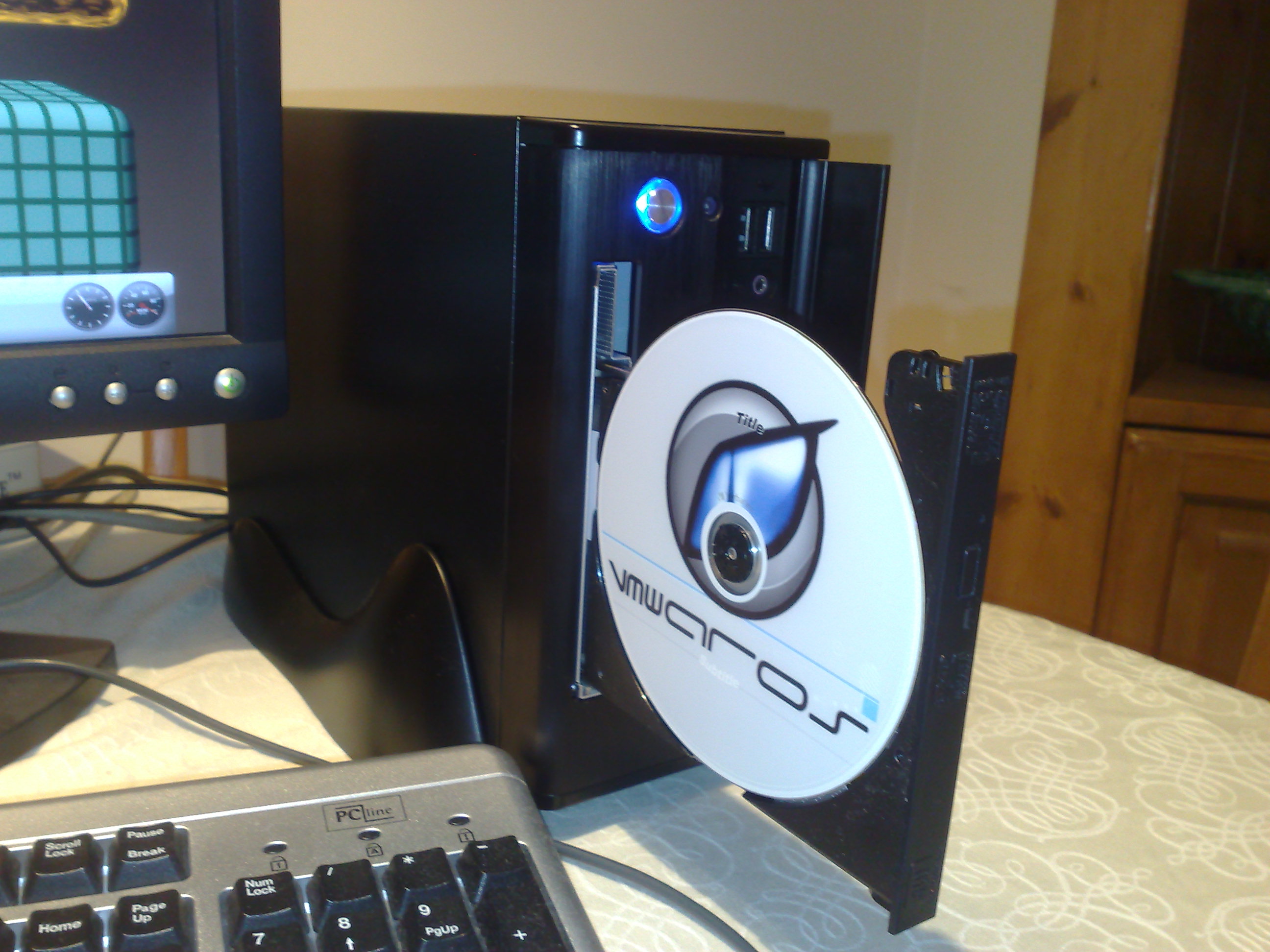

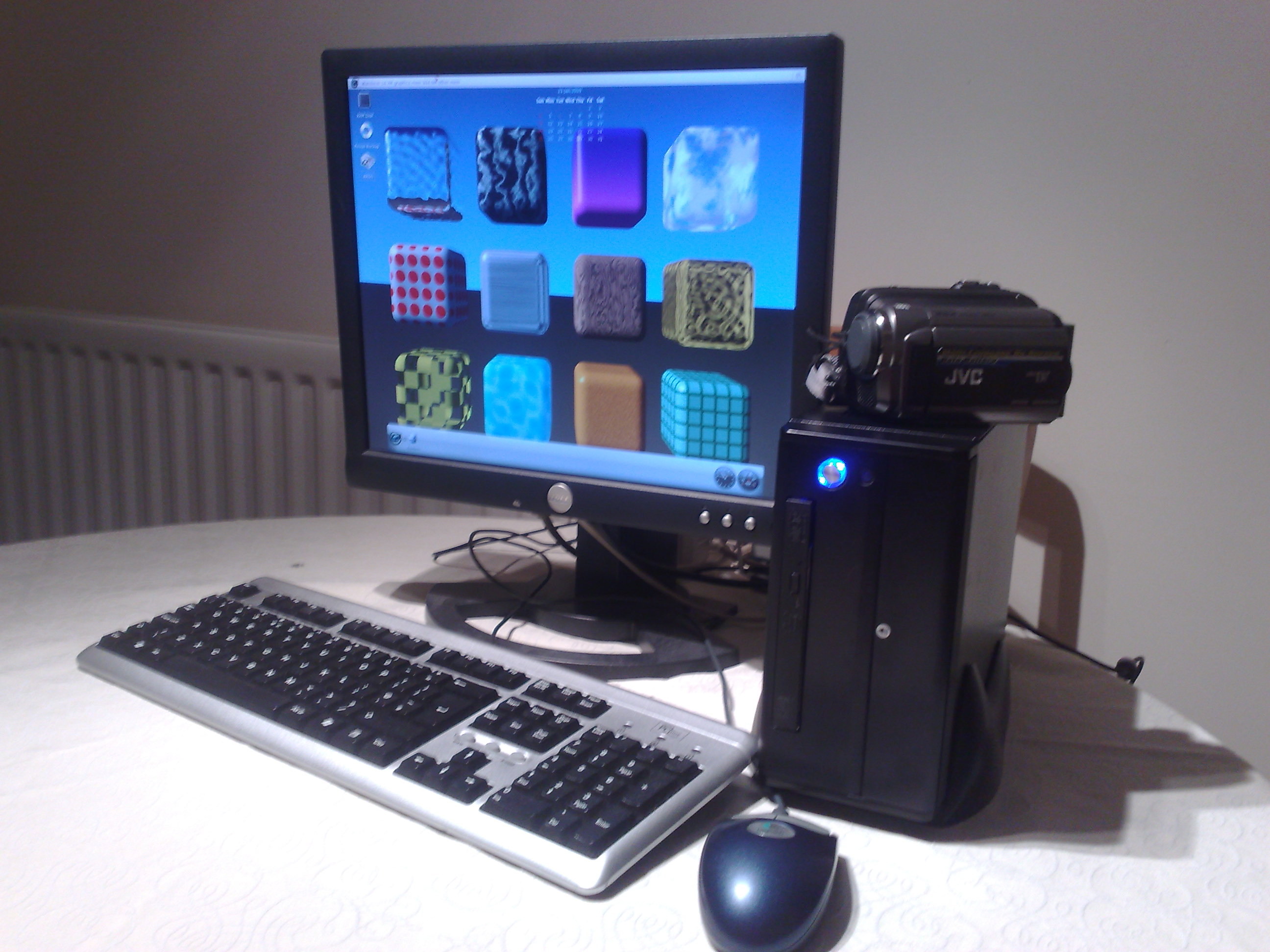

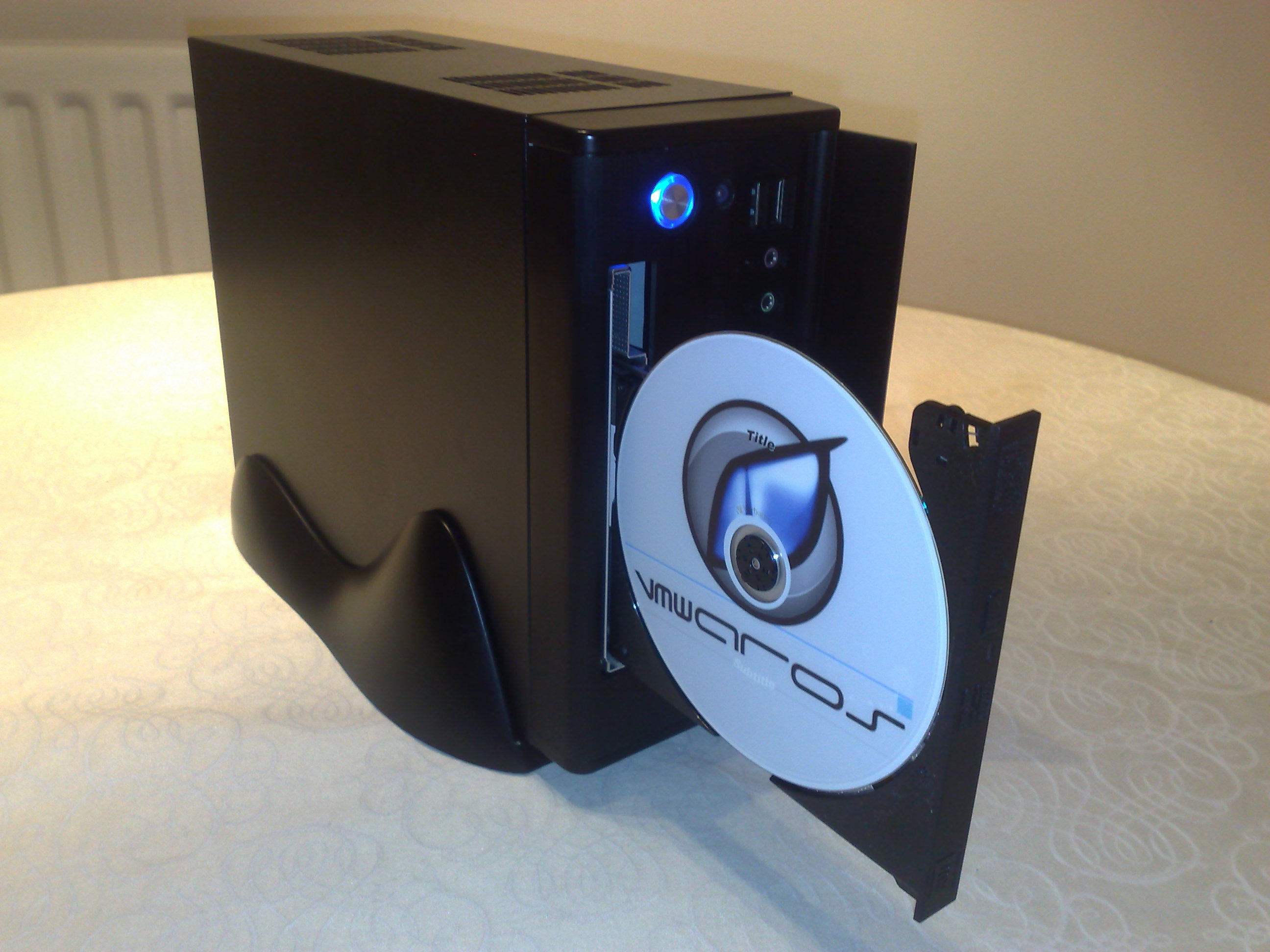

This product is based on the Intel ITX motherboard in a very small footprint case about the size of two CDrom drives on top of each other. Performance is great because of the way that Aros is designed, which is lightweight and not cumbersome like Windows and Unix systems.
This system will run the VmwAros v1.02 and upwards distributions and it comes preinstalled and ready to go. If you want to learn more Click Here
If you own Amiga Forever, or you purchase it at the same time as the unit, then this system will run most Amiga 68k software within the Aros environment.
Included in this system OS are programming tools, games, internet tools, music and video player and much more.
Important Note:
Aros is at present around 90% complete and whilst this is a very usable computer and when not testing beta software is a nice stable ish platform. However as this system is still beta at the moment can fall over, although the fast reboot means it is not the end of the world. So if you are looking for a robust system please look elsewhere while we finish the system, however, if you are an adventurous hobbyist and want to see what this system is capable of now in a powerful and fun small computer that will bring back the excitement of owning an Amiga like computer again, on fast hardware, but with full compatibility with Amiga Forever then here it is.
At present while more advanced drivers are written for this unit, it will have an extra Soundblaster live card to replace the inbuilt sound. Once sound drivers are written this can be removed and free the built in PCI slot for future planned upgrades.
Core Features

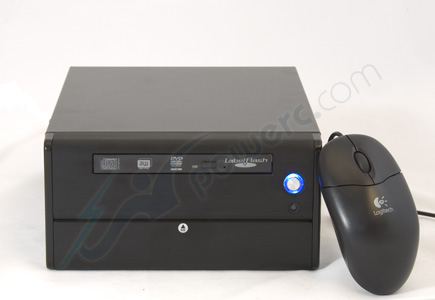

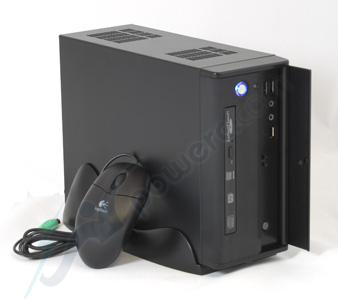

Mini-ITX Case
Colour
Black with Aluminium Parts
Form Factor
Mini-ITX Desktop
System Board
Mini-ITX (17cmx17cm)
Drive Bays
External 5.25": 0 - 1 x Slim Optical Instead
External 3.5": 0
Internal 3.5": 1 or 1 x 2.5"
Internal 2.5": 1 or 1 x 3.5"
Internal 5.25 Slim Optical DVD R/W
Materials
Chassis: SECC
Front Panel: ABS Plastic with Aluminium Parts
Cooling: 1 x 80mm fan (Included)
Power Supply
90W DC-DC board
80W AC/DC adapter (DC Board: PJF90-DC-NH, External Adapter: PJF80.ADP Included)
Expansion Slots
1x Full Height PCI Slot via included riser

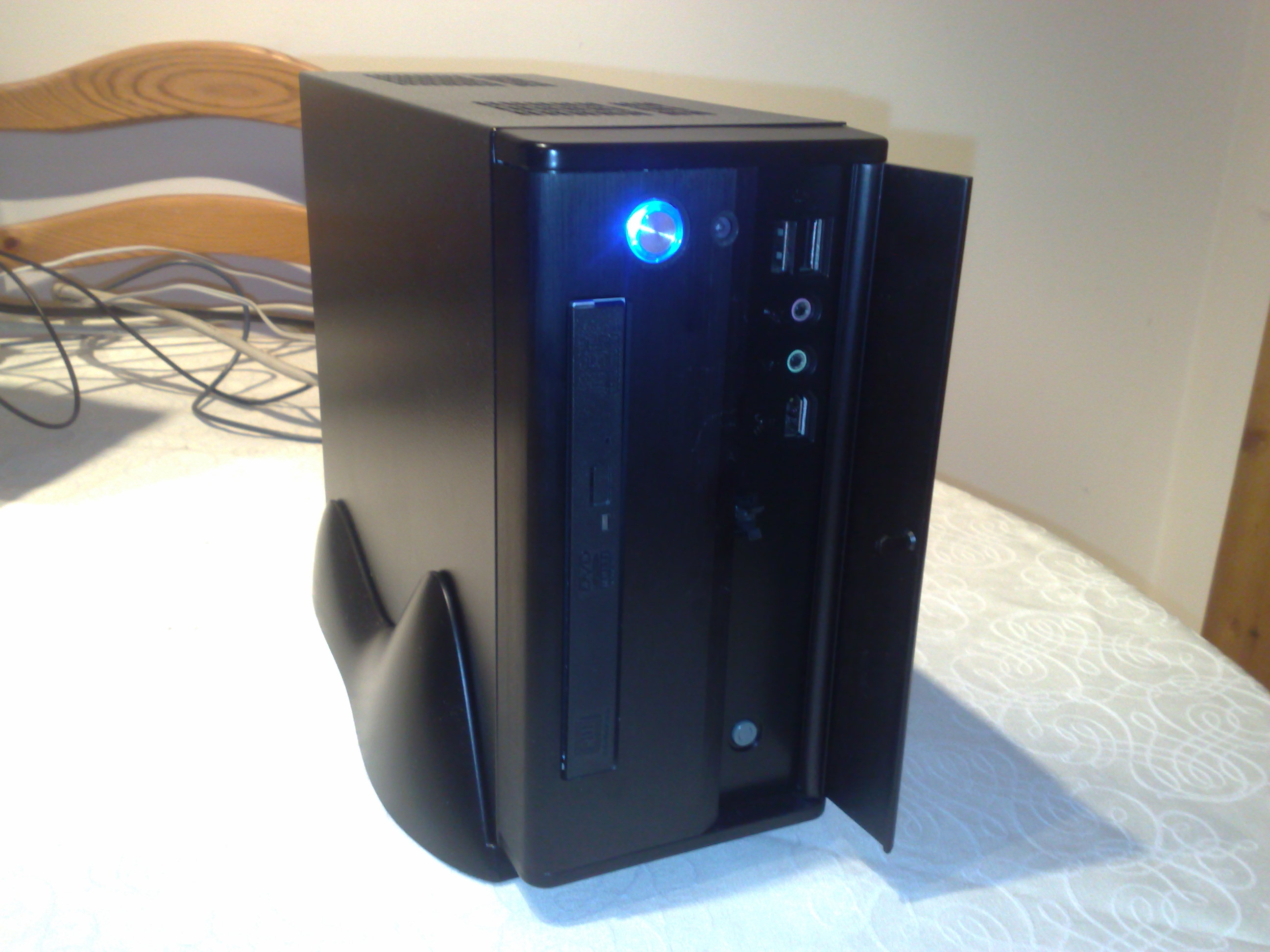

Front Panel Connectors, Switches & Indicators
Power Switch
Reset Switch
2 x USB2.0
AC'97 / HDAudio (Not usable until new sound drivers written, use rear connectors)
Power & HDD Activity Indicators
Dimensions & Weights
Product Dimensions (WxDxH): 220x273x97mm
Intel® D945GCLF2 with Intel® Dual Core Atom™ 330 Processor
Form factor
Mini-ITX /micro-ATX compatible (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters])
Processor
Integrated dual-core Intel® Atom™ processor 330 with a 533 MHz system bus
Memory
One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 533/667 MHz DIMMs
Support for up to 2 GBΣ of system memory
Chipset
Intel® 945GC Express Chipset and Intel® I/O Controller Hub 7 (ICH7)
Audio
Realtek* ALC662 audio codec (5.1 channel HD audio) (Driver unavailable yet)
Video
· Intel® Graphics Media Accelerator 950 & S-video output support (Runs in VESA support mode Very Good though, native drivers come later)
I/O Control
SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports (not all supported)
LAN Support
10/100/1000 Mbps LAN subsystem using the Realtek* LAN adapter device

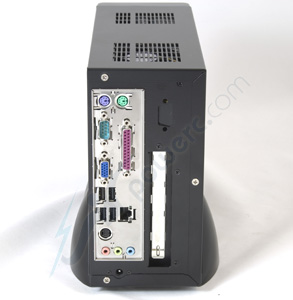

Peripheral interfaces
· 2x Front USB 2.0 ports & Front Audio
· 4x Rear USB 2.0 ports
· Two Serial SATA ports (3.0 GB/s) (Must be switched to Legacy Mode)
· One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
· One serial port
· One parallel port
· PS/2* keyboard and mouse ports (Must use these, especially mouse only works from PS2 port)
Expansion capabilities
One PCI Conventional* bus connector
Samsung 1GB (1x1GB) DDR2 800MHz
Slim DVD-RW
160GB 7200RPM SATA II
